Conveyor Belt

Parts for EDM Drilling Machine

Ceramic Pipe Guide / Seal Rubber



TS Guide Set for Sodick K1C

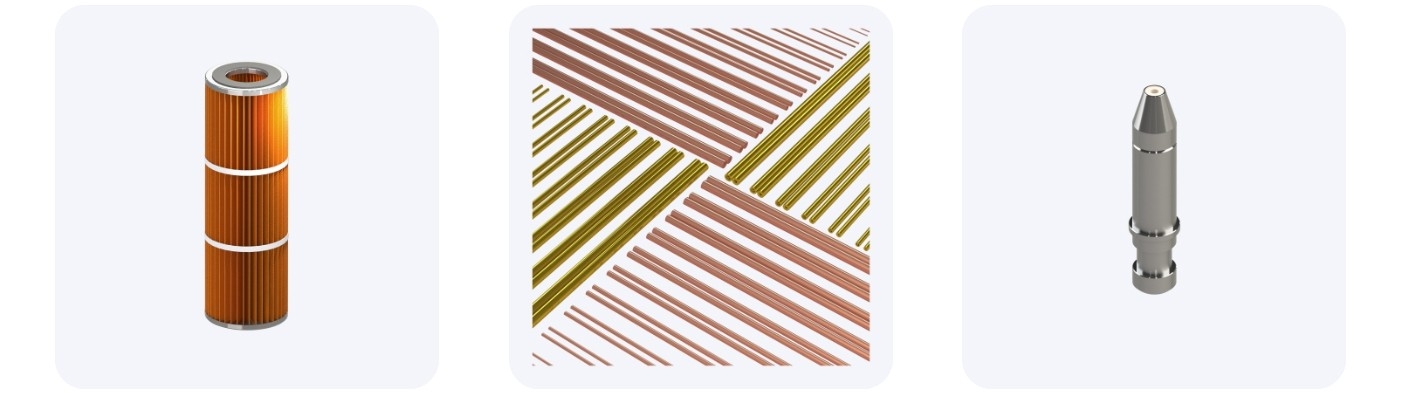

Electrode Tubes

Copper S-1 / Brass BS-1

• Superior product quality and high precision achieved by technology developed through long years of experience.
• The high degree of straightness provides for a minimum over-cut allowing for high precision machining.
• The “Eddy Current” test has eliminated damaging cuts and cracks.
• The electrode pipes are free from problems of outer diameter variance, and the high degree of circularity insures that the pipes don’t become clogged.



Coreless Electrode Tubes

Copper S-8 / Brass BS-8

• Without core remaining, the unique cross-section shape is ideal for deep hole discharge machining.
• Exit problems such as the problem of “jumping”during passing operations have been eliminated.
• The unique shape and well-balanced cross section maintain a stable electrical discharge which insures high precision machining.
• Punching time has been greatly reduced.

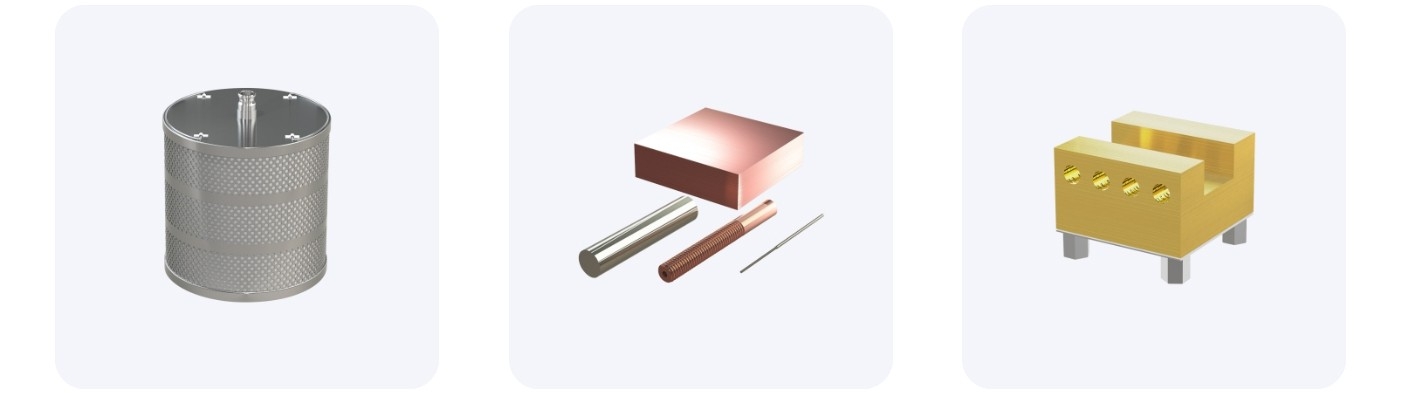

Electrode materials for Electric Die Sinking Machine

Copper Tungsten alloy, Silver Tungsten alloy are suitable for application which requires accurate surface finishing and dimensional accuracy. They keep stable discharge, and earn faster machining and less consumption of electrodes.
※We deal with other specific electrodes as well, please feel free to send us an inquiry anytime.

Ion Exchange Resin

SUNROX Resin is an extra high quality, pure mixed-bed resin specially formulated for the deionization of water in wire EDM machines. This virgin resin offers many additional hours of service life over ordinary products, and reduces downtime required for frequent resin changes.

Magnets Mini Magnets Manifold Flush Magnets

Holds slug securely – prevents shifting, which could cause loss of part size and contour, plus possible wire breakage and resulting downtime. Solves one of the most difficult wire EDM operations– starting a wire cut into the edge or side of the work piece without the advantage of a starting hole.

Wire Tension Tester

<Simple operation>Handheld Digital Tension Tester Wire Tension Tester is the handheld electronic digital measuring instrument to measure the tensions accurately and process the measured date statistically.
To confirm the most appropriate tension from quality control.
To standardize the production line.

R.O.Tech

Ion exchange resin is essential for Wire Electric Discharge Machine.

Features

• We can obtain RO water as just directly connecting hose from tap water.
• Do not use any chemical stuff.
• Enable saving space because of compact design.

Usage

• Machining fluid (water) for Wire EDM.
• Washing water for metal plating.
• Water for washing and cleaning.
• For pre-process of pure water device.
• Other
  Other usage is wide range.

Usage example

Please consult us set of R.O.Tech device including cartridge water cleaner, tank, water supply pump.

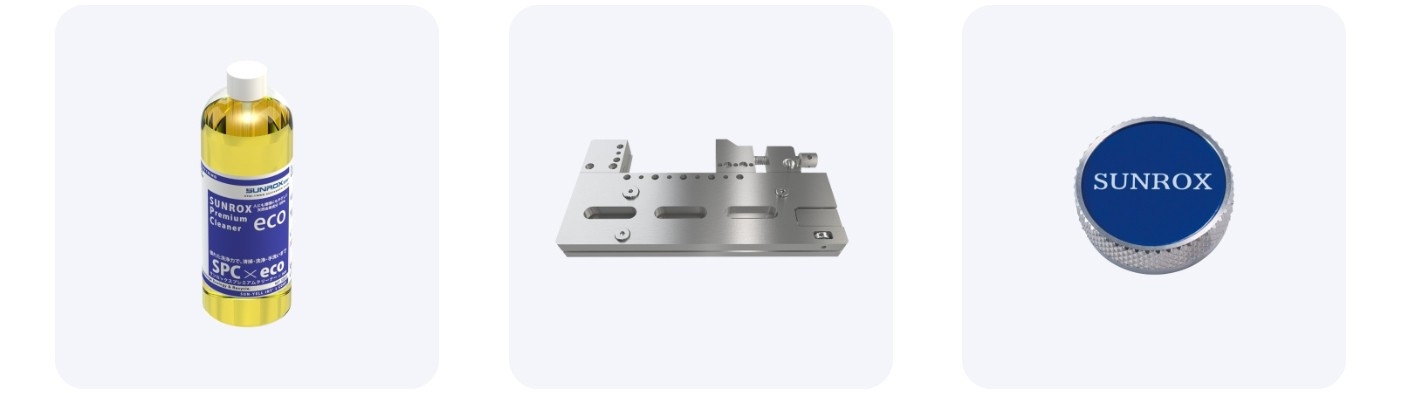

SPC x eco SUNROX Premium Cleaner x eco

SPC x eco has great detergent and can be used for various applications such as cleaning, washing, hand-washing.

100% naturally-derived elements, this is eco-friendly products and waste fluid doesn’t cause secondary contamination.
This is neither emulsification nor delipidation. As this strips off contamination, it doesn’t cause skin damage and is tender for human-beings.
At the same time, it works for rust preventive as well as cleaning effect because of forming high polymer choroid coat.

Detergent mechanism of SPC x eco

Note : In case of general synthetic detergent, extremely delipdation from hand (skin) and reattaching and spreading the elements of detergent and contamination, there are such faults.

Cleaning result 1

Wall paper : Cleaning of oil spot and other contamination.
Cleaning with straight liquid. We can clean out strong contamination without damaging wall paper.

Cleaning result 2

Gear : Case of cleaning sludge with ultrasonic.
Comparing cleaning with tap water and liquid of 5 times dilution. (ultrasonic cleaning for 20 minutes). In case of cleaning with tap water only (Left), contamination has left over and reattached. In case of liquid of 5 times dilution (Right), cleaned off contamination completely.

Evidence of rust preventive effect

Put clip and steel nail in tap water and SPC liquid in 100 times dilution, and looked over the status for 1 week.
What in tap water has getting rust from the second day.
2 weeks later : We confirm that what in SPC liquid in 100 times dilution have never seen any getting rust even after 14 days.

Chemical Solution

RUST REMOVER SOLUTION : KC-12

No poisonous gas or irritation during rust removal process.  ※Use KC-12A on copper and brass for rust prevention.

ANTI RUST SOLUTION : CP-4000 (For overseas)

Non-sticking,5 μ grade rust preventing oil that completely excludes moisture.
※ Spray type is also available (Mecha keeper CP-3N 480mℓ )

RUST REMOVER SOLUTION：Rust remover K-200

Remove sludge and carbon deposit on wire-EDM with just one wipe.

RUST REMOVER SOLUTION：Mecha Sludge Cleaner

Maintenance of wire electric discharge machine.Rust removing from machined work. Neutral type.

ANTI RUST SPRAY：Mecha P-Coat

Rust and electrolytic corrosion prevention.

ANTI RUST OINTMENT CREAM：Mecha P-700

Rust and electrolytic corrosion prevention.

ANTI RUST PROCESS SOLUTION：Mecha Proof W-2K

Rust and electrolytic corrosion prevention.（Put in the machining liquid tank approx 0.2 to 0.6% against the machining liquid)

ANTI RUST PROCESS SOLUTION：Mecha Proof W-91

Rust and electrolytic corrosion prevention.(Put in the machining liquid tank approx 0.3 to 0.5% against the machining liquid)

CLEANING SPRAY：Mecha Fine Mate

Quick dry type cleaner for metal mold, precision parts,electrodes,etc.(Chlorine free)

ANTI RUST SPRAY：Sabinite

Rust and electrolytic corrosion prevention.

CLEANING SPRAY：GP Cleaner

Quick dry type cleaner for metal mold, precision parts,electrodes,etc.

MID VISE

• Positioning is easy with one touch button.
• Fulfill maximum weight 20kg with 3D adjustment function.
• Various optional parts are available.

Jig System Tools

JIG BASE

JIG HOLDER

EXTENSION JIG
