Filter Element

Filter element for wire cut electric discharge machine.
Log life of Premium-Cut filter is succeeded in weight reduction. Advanced Filter has maximum filtration area by special folding. We have wide range of filters for water and oil for each machine type.

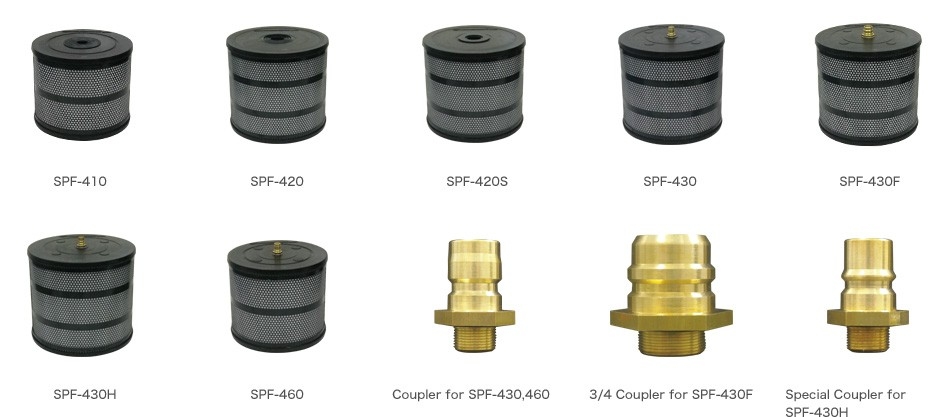

SPF SUNROX Premium-cut Filter

Filter element for wire cut electric discharge machine
  • Light weight and easy handling. Adopting urethane material for top & bottom plates succeeded in reducing 40% of weight. You can handle easily. Unlike metal type of filter, you can break down the filter easily when you dispose
  • Long life By the most efficient paper folding ,the dead paper area can be minimized and get the maximum life time.
  • Detachable & Reusable coupler Adopting detachable & reusable coupler(Brass), good for the environment and saving the cost.

filter01

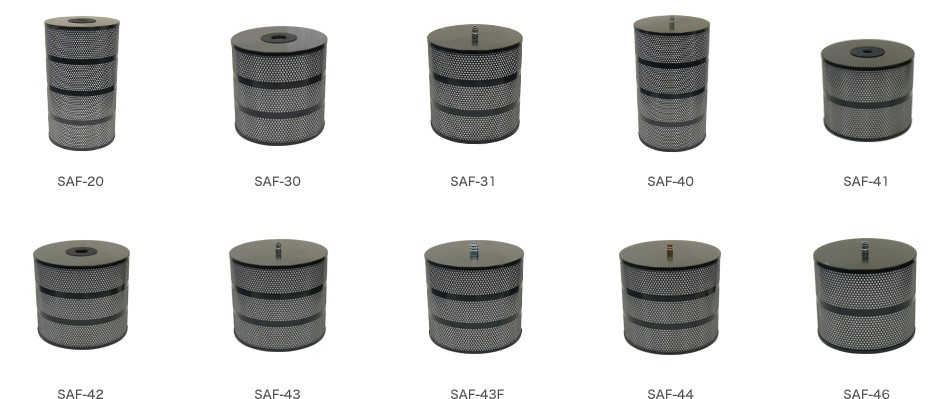

SAF SUNROX Advanced Filter

Filter element for wire cut electric discharge machine
  • By Special folding paper technology, succeeded in having paper area increased. Filtration performance is much improved, then wear life is 20-30% LONGER than other conventional filters.

filter02

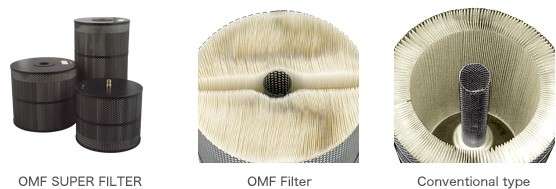

OMF SUPER FILTER

Filter element for wire cut electric discharge machine
  • Added further long life type into well-known OMF series.
  • First filtration is extremely clean when starting filtration; it performs for surface roughness, the second discharge issue, water visibility and so on.
  • Cutting sludge on the surface of filter paper falls down when ON and OFF of machine, so it becomes easy to recover filtration pressure.

filter03

FILTER FOR WIRE EDM

Filter element for wire cut electric discharge machine

FILTER FOR EDM SINKING

Filter for EDM Sinking
